The Biological Aerated Filter (BAF) is a wastewater treatment process that integrates biological degradation and physical filtration within a single unit. Its core mechanism relies on microorganisms attached to the surface of filter media. These biofilms oxidize and decompose organic pollutants in wastewater. At the same time, the filter material captures suspended solids, while the micro-environment within the biofilm supports denitrification, further removing nitrogen from wastewater.
In a BAF, fine granular media are packed inside the filter tank, providing a large surface area for biofilm growth. Aeration supplies oxygen and maintains biological activity. As wastewater flows through the media, pollutants, dissolved oxygen, and other compounds diffuse into the biofilm surface and interior. Leveraging the high oxidative degradation capacity of biofilms, organic contaminants are rapidly broken down, a process known as biological oxidation.
In addition, because the media are relatively small and tightly packed, the bio-flocculation capacity of the biofilm effectively traps suspended solids, preventing detached biofilm from washing out. Over time, head loss increases due to the accumulation of solids, making backwashing necessary. During backwash, suspended solids are flushed out and the biofilm layer is renewed.
The BAF process achieves excellent performance in removing suspended solids (SS), chemical oxygen demand (COD), biochemical oxygen demand (BOD), nitrification, denitrification, phosphorus, and even toxic substances such as AOX. By combining biological oxidation with physical filtration, BAF offers several advantages over conventional activated sludge systems:
Higher organic loading capacity
Smaller footprint (about one-third of activated sludge plants)
Lower capital cost (savings of around 30%)
High oxygen transfer efficiency and stable effluent quality
Relatively low operating and energy costs
However, BAF is sensitive to influent suspended solids. Typically, SS ≤ 100 mg/L is required, and the best performance is achieved when SS ≤ 60 mg/L. This means pretreatment is often necessary. Another limitation is the relatively large water demand and head loss during backwashing.
The tank body provides structural support, holds the required water volume, and houses the filter media and aeration system. It is usually built from reinforced concrete or steel, with the internal layout determined by treatment scale and process design.

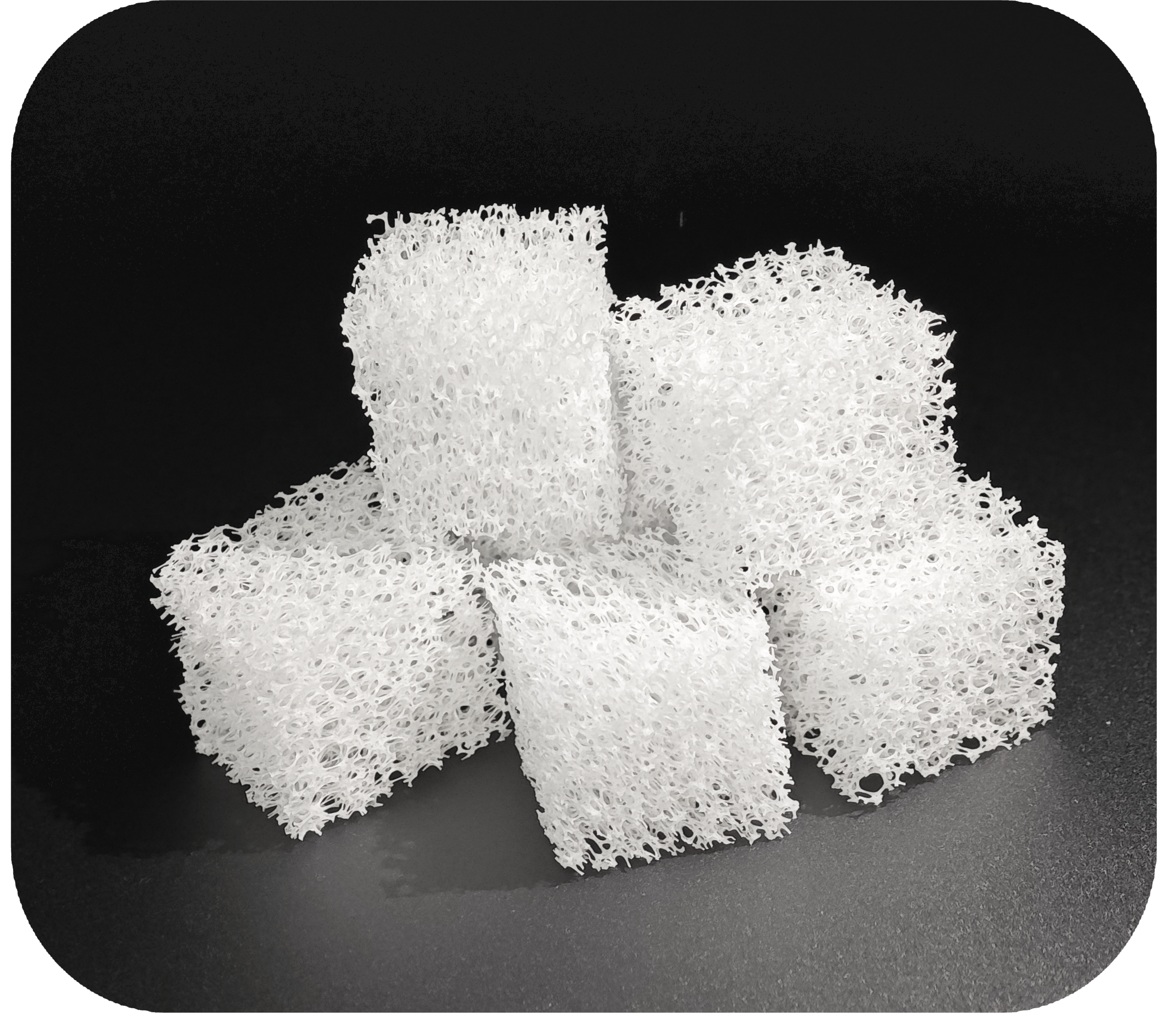

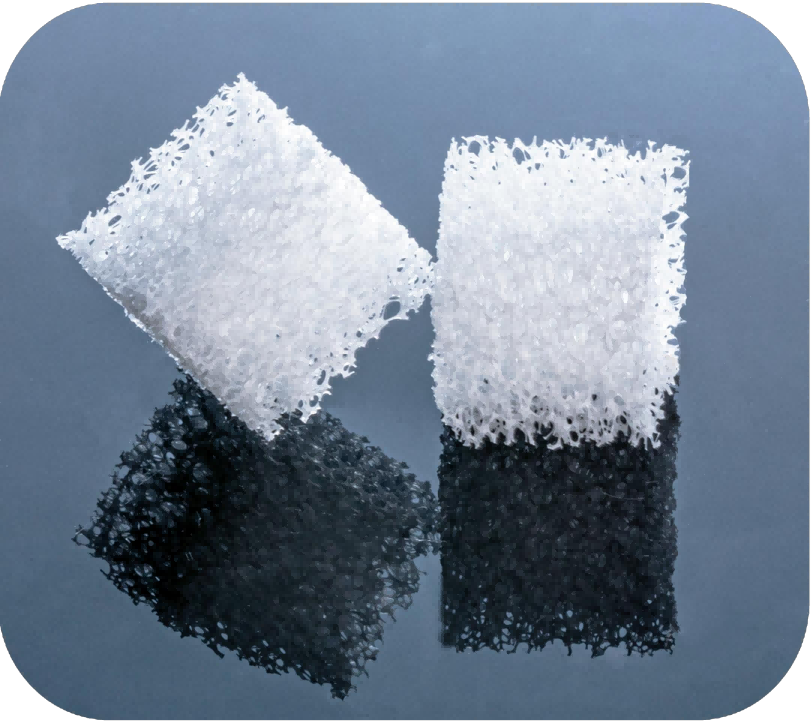

The biological media layer supports biofilm growth and plays a key role in capturing suspended solids. Various shapes are used, including honeycomb tubes, bundles, spherical or mesh-type media. Materials range from porous ceramics, quartz sand, expanded shale, lightweight plastics, to fiberglass.
When selecting filter media, factors such as mechanical strength, specific surface area, porosity, and surface roughness are critical to ensure efficient microbial attachment and stable operation. Spherical media can improve flow distribution and reduce hydraulic resistance.
The support layer, usually gravel, stabilizes the media bed, prevents clogging of filter nozzles, and ensures effective backwashing. Its thickness typically ranges from 400–600 mm.
The water distribution system, consisting of a plenum chamber and filter nozzles, ensures uniform hydraulic flow. Options include fixed, rotating, and swinging distributors. The choice depends on treatment scale, geometry, influent quality, and required flow velocity.
The aeration system provides oxygen during normal operation and supports backwashing. While simple perforated pipes are common, it is crucial to size the system correctly to meet both oxygen supply and air-water backwash needs. Since oxygen demand is much lower than backwash demand, ensuring even air distribution can be challenging.
Backwashing is essential for maintaining performance. Standard procedures involve air scour, combined air-water wash, followed by water rinse. Precise control of intensity and duration is critical—too weak reduces cleaning efficiency, too strong risks damaging or washing out biofilm.
Effluent can be collected through peripheral or side weirs, depending on design. Proper effluent system design directly affects process stability.
Piping delivers influent, effluent, and air, while the automation system (control panels, sensors, valves) ensures real-time monitoring and reliable operation.
Before commissioning, operators must:
Understand the overall treatment process and design objectives.
Inspect pipelines and valves to ensure proper installation.
Start influent carefully to remove trapped air and check aeration uniformity.
Wash the media thoroughly until effluent runs clear.
Conduct equipment load tests to verify safety and stability.
During start-up, attention should be given to effluent quality, aeration uniformity, and backwash effectiveness. Adjustments are made gradually until the filter achieves stable and efficient treatment performance.
Biofilm attachment (seeding) is a key stage. Microorganisms colonize the media surface, forming a functional biofilm that drives pollutant degradation.
Acclimation and adaptation are necessary to enhance microbial activity for specific wastewater types. Over time, biomass quantity and quality improve, allowing the system to meet stricter discharge standards.
As the biofilm thickens, head loss increases and treatment efficiency may decline. Regular backwashing restores media performance. A typical cycle involves:
Air scour to expand and loosen the bed.
Combined air-water wash to remove solids and old biofilm.
Final water rinse to flush residual particles.
Optimal biofilm thickness ranges from 0.5–1.0 mm. If thickness exceeds 2 mm, oxygen transfer is hindered, leading to anaerobic zones and reduced efficiency. Studies show that each 0.1 mm increase can reduce COD removal efficiency by 1.5–2%. For example, maintaining thickness at 0.8 mm often results in peak COD and ammonia removal.
Odor: Caused by excessive organic load or thick biofilm layers turning anaerobic. Solution: improve aeration and strengthen backwashing.
Unexpected biofilm sloughing: Often due to toxic influent, pH shock, or inhibitory substances. Solution: stabilize influent quality and pH.
Efficiency drop: May result from low DO, unfavorable pH, temperature shifts, or hydraulic overload. Solution: adjust aeration and influent conditions.
Reduced solids capture: Linked to poor pretreatment and high SS influent. Solution: enhance pretreatment.
Influent quality fluctuation: Adjust aeration rate and duration based on influent concentration.
Effluent deterioration: Cloudy or muddy water indicates excessive biofilm thickness or over-intense backwashing. Black or odorous water points to insufficient DO, requiring increased aeration and inspection for blockages.
BAF offers multiple benefits:
High pollutant removal efficiency
Compact footprint
Lower capital and operating costs
Stable effluent quality
It is suitable for municipal wastewater plants, industrial effluents, and water reuse projects. The process can also be optimized for nitrification, denitrification, or phosphorus removal, depending on treatment objectives.
